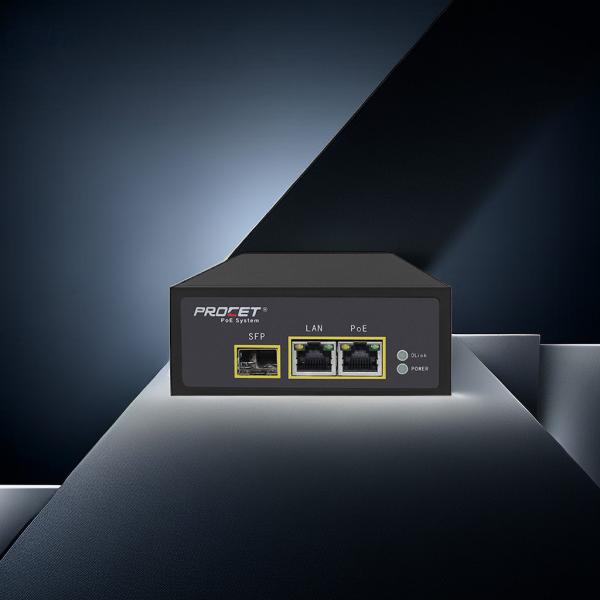

Product Description:
The fiber PoE converter is designed for use in industrial Ethernet applications and is capable of delivering up to 1000Mbps data rate. Its waterproof case makes it suitable for outdoor use in harsh environment. The industrial fiber PoE injector has an AC input current of 2.0A and an input voltage of 90 to 264Vac (100 to 240Vac rated). Its metal case ensures durability and extends the life of the product. This injector is ideal for use in long range Ethernet applications and is designed to meet the needs of mission-critical applications. It is also suitable for use in PoE applications where power is required over long distances. The injector is a powerful and reliable solution for industrial Ethernet applications.
| Warranty | 2 years |
| Safety Approvals | cUL/UL, CE, CB, FCC, KCC |
| Key Features | Industrial Fiber PoE can be outdoor use by covered with waterproof case |
| Surge protection both at PoE port and AC port |
| 1000Base-FX to 1000Base-TX |
| SFP slot for Multi mode or Single mode SFP transceiver |
| Gigabit data rates |
| AC power cord with optional US or EU plug or other standard plug |
| IP20 high-impact metal enclosure |
| Extend temperature from -40℃ to 65℃ |
| Diagnostic LEDs |
| Part Number | PT-PSE109GBRO-A-S fiber PoE converter |
| Ports condition | SFP Port*1, LAN Port*1, AC Input Port*1, PoE Output Port*1 |
| Regulatory Compliance | IEEE802.3bt |
| RoHS Compliance |
| WEEE Compliance |
| Pass Through Data Rates | 1000 Mbps |
| Output | Pin Assignment and Polarity: |
| 4/5(+), 7/8(-) and 3/6(+),1/2(-) |
| Output Power Voltage: 55Vdc |
| User Port Power: 95W Guaranteen |
Features:
- Gigabit fiber PoE converter
- Operating Humidity: 20% To 80%, Non-condensation
- Case: Metal
- Color: Black
- Data Rate: 1000Mbps
- Storage Humidity: 10% To 90%, Non-condensation
- SFP PoE injector
Applications:
The PROCET 109GBRO-A-S is an fiber PoE converter specifically designed for outdoor use with a waterproof case. This 802.3bt fiber PoE injector is capable of delivering a data rate of 1000Mbps with a maximum output of 55Vdc at 2.0A AC input current and a frequency range of 47 to 63Hz (50/60Hz typ.). It is also capable of delivering a maximum power of 95W over the network, making it ideal for PoE applications. The PROCET 109GBRO-A-S is a highly reliable and cost-effective solution to quickly and easily bring PoE to any environment, including outdoor locations.
Customization:
Our fiber PoE converter is a 802.3bt compliant Fiber PoE Injector with 8 protected lines. It is designed with PROCET brand name and model number 109GBRO-A-S. It has a metal case and an operating temperature range of -40℃ To 65℃. The output voltage is 55Vdc. This Fiber PoE Injector is widely used in many applications and its place of origin is Dongguan China. Its product name is PT-PSE109GBRO-A-S fiber PoE converter.
Support and Services:
Fiber PoE converterTechnical Support and Services
We provide technical support and services for our fiber PoE converter products. Our team of qualified engineers are on hand to answer any questions you may have, and offer technical advice on how to install and use the product. We also provide a comprehensive warranty on the product, ensuring you are covered in the event of any faults.
If you need any additional assistance, we can provide on-site installation and training services, depending on the size of the project. We also offer remote support, which can help to resolve any issues quickly and efficiently.
For more information, please contact our customer support team at [contact_email].
Packing and Shipping:
Fiber PoE converter Packaging and Shipping
Fiber PoE Injectors are safely and securely packaged and shipped. They are shipped in a standard box with foam inserts to ensure the product is not damaged during transportation.
To prepare for shipping, the Fiber PoE Injector is placed in a polyethylene bag to protect it from dust and humidity. The product is then placed in a cardboard box and secured with packing tape. The box is clearly labeled with the product’s name and SKU for easy identification.
The box is then secured with bubble wrap to prevent any potential damage during transit. The box is then placed in a larger cardboard box and secured with packing tape. The larger box is clearly labeled with the product’s name and SKU for easy identification.
The package is then ready to be shipped out to the customer. To ensure that delivery is successful, a tracking number is provided to the customer.
FAQ:
Q1: What is the brand name of the fiber PoE converter?
A1: The brand name of the Fiber PoE Injector is PROCET.
Q2: What is the model number of the fiber PoE converter?
A2: The model number of the fiber PoE converter is 109GBRO-A-S.
Q3: Where is the Fiber PoE Injector produced?
A3: The Fiber PoE Injector is produced in Dongguan, China.
Q4: What is the maximum transmission distance of Fiber PoE Injector?
A4: The maximum transmission distance of Fiber PoE Injector is up to 1000m.
Q5: What is the working temperature range of Fiber PoE Injector?
A5: The working temperature range of Fiber PoE Injector is -40℃ to +70℃.
