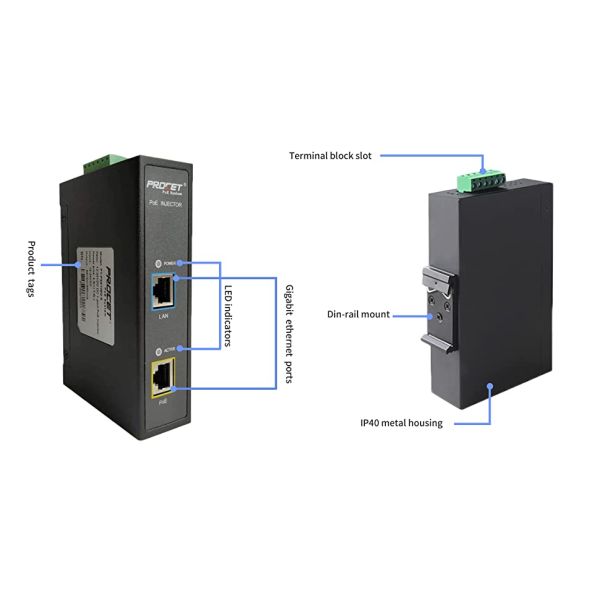

PROCET Industrial PoE Power Supply Supports Gigabit Transmission Rate, PoE Adapter With Boost Function, With DIN Rail Mounting Bracket, PT-PSE105G-E Wide Temperature Operation -40℃ to 75℃
● Wide Temperature Operation: industrial-grade PoE power supply, strictly in accordance with the -40 ℃ is 75 ℃ working temperature. Selected industrial-grade equipment using natural cooling methods to ensure stable equipment in the temperature range of long-term operation.
● Metal Housing, Fast Heat Dissipation: PT-PSE105G-E industrial-grade PoE power supply fast heat dissipation: IP40 metal housing, strong color dispersion performance to ensure stable operation of the machine, designed for indoor use, but can be covered with a waterproof housing to work outdoors.
● DC Wiring Port: PT-PSE105G-E PoE power supply can be externally connected to solar-powered terminal type power access with reverse connection protection and supports dual DC inputs for redundancy protection.
● Stable Long-distance Transmission Rate: industrial-grade PoE power supply, including boost function, gigabit data transmission rate, providing the power of 30W, all can withstand 6KV, 10/700uS impact voltage waveform, the transmission distance of 100 meters.
● International Standards: All materials comply with RoHS and Reach standard requirements, with CE safety certification, the equipment is sold worldwide.
| Pass Through Data Rates: | 10/100/1000 Mbps | Storage Humidity: | 10% to 90%, non-condensation |
| Output Power Voltage: | 55Vdc | Operating Altitude: | up to 5000meters |
| User Port Power: | 30W | Common mode surge protection: | 6KV |
| DC Input Voltage: | 12 to 48 Vdc | Differential mode protection: | 1.5KV |
| DC Input Current: | 4.0A | Mounting: | DIN-rail |
| Operating Temperature: | -40℃ to 65℃ | IP Rated: | IP40 |
| Operating Humidity: | 20% to 80%, non-condensation | Connectors: | Shielded RJ-45*2 |
| Storage Temperature: | -40℃ to 85℃ | Size: | 144.5mm X 95mm X 35.4mm |
FAQ
Q: Are you manufacturer or trading company?
A: Manufacturer, and industry network total solution provider.
Q: Do you accept ODM/OEM?
A: Yes. We provide customized service.
Q: What is your minimum order quantity?
A: MOQ is 1 unit.
Q: What’s the payment type?
A: T/T, L/C,Western Union, Money Cram, Credit Card, Alipay, Cash.
Q: What are the accepted trade terms?
A: EXW, FOB, CIF, FAS, CIP, FCA, CPT, DED, etc.
Q: How about the shipping time?
A: Within 3-15 days after receiving full payment, but if you need OEM/ODM, the lead time depends on the specific specifications of the product.
Q: How about after-sales service?
A: 7/24 hours online and respond to user's field device problems in time.
Q: How about the warranty?
A: 5 years.
Company Introduction:
PROCET(Creative Lianjie Network Technology Co.,Ltd) was established in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.
Why Choose Us:
Operating since 2000
PROCET(Creative Lianjie Network Technology Co., Ltd) was established in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.
R&D Engineer Team
PROCET's engineers used PoE in 2002, and then mainly focused on PoE since 2003 the IEEE802.3AF standard comes out. We got our first paten on single-port PoE at the end of 2003.
Our PoE engineers have experience of more than 15 years now. They started to R&D the surgeon PoE using, and now they have a great contribution to our outdoor PoE series.
Production quality assurance
We kept our stable production workers, four QC with at least 4 years of experience to make sure the production.
We have aging testing, high-low temperature testing, surge testing, drop testing, and swing testing before delivery.
We have CCC, CE,FCC,UL,TUV certification for our PoE.
OEM&ODM services
We do OEM services. Our MD engineer can help to design the LOGO, the label, the package, and even the Housing.
We do ODM services too, special on the high power PoE solutions, the Boost-Buck voltage PoE, AC/DC surge PoE.
Ordering:
Order Info. : PT-PIS2P2S-AC DIN-Rail PoE Fiber Switch, Lighting Protection
Packing. : PT-PIS2P2S-AC
Manual x 1
